Headlight wiring

[MoriniMike]

Hi guys, I've spent 3 days trying to get the headlight to work. Wired up as blue book for 6 pole switch but can only get a side light. That goes out when switched to main beam. Is the handlebar switch connected to earth?
Anyone got a diagram of switchgear to headlight?
Cheers
Mike

[Chips1953]

Did you get a reply on this?
My switch has been butchered by the previous owner and am looking for some info?

Thanks

George

[Chips1953]

Well I worked that one out, so if you read this you'll know I don't need you to replay.

Thanks.

[TurboRestorer]

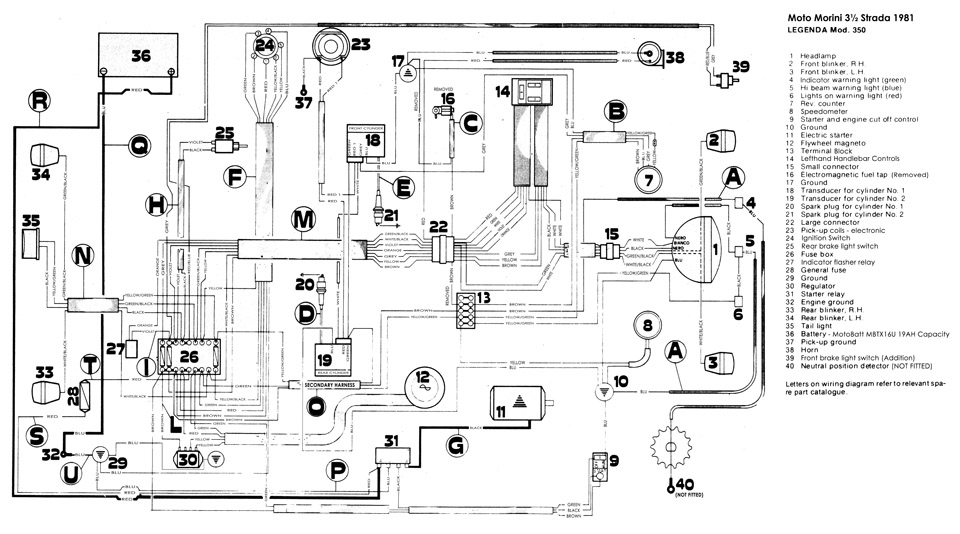

Try this wiring diagram. The headlight housing is an earth point as are the indicator mounts, these are a known issue.
[img]

Moto Morini Wiring Diagram (Mod 350).jpg (167.97 KiB) Viewed 7189 times

[/img]
This diagram has been modified to suit our Morini so there may be some differences but all the electrics work, headlight flasher is on dipped beam from factory.

[Chips1953]

The problem with mine was that the headlight had been changed from the original and a separate + feed had been put into the equation. There is a link in the original headlight switch that is supposed to feed the main/dip switch for either Main or Dip. This was not the case with mine, I don't know why. I inserted a link from the Light switch "on" connection to the Main/dip switch and removed the secondary + feed. Bob's you uncle.
