Photo of front piston and conrod

[j2maria]

A recent private poster was worried that the pistons and con-rods of his machine were assembled incorrectly by some previous owner and wanted to see photos to make sure he assembled it correctly. Even though the manual has the drawings of the piston and the con-rod arrangement, since I was going to take the photos anyway, I thought I would post them here.

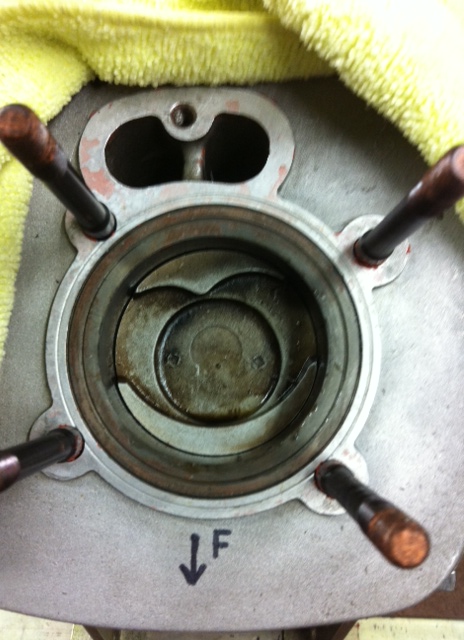

Front piston

Morini 350 Front Cyl and Piston.JPG (117.82 KiB) Viewed 3305 times

Front piston skirt

Morini 350 Front Piston.JPG (95.33 KiB) Viewed 3305 times

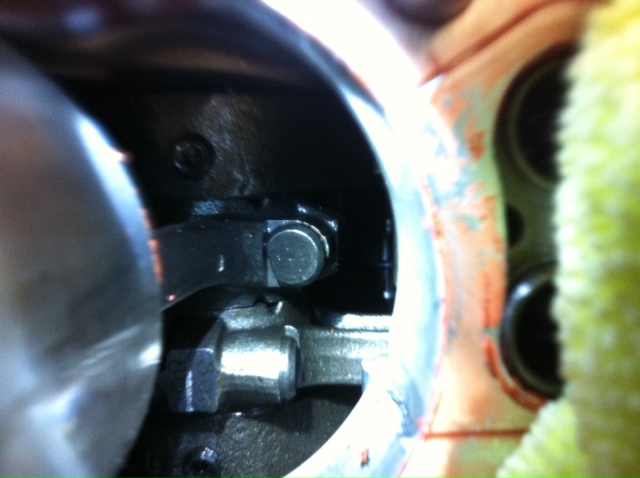

Con-rod arrangement

Morini 350 Con rods.JPG (92.71 KiB) Viewed 3305 times

The wider side of the con-rod big ends face each other

[mad muller]

many thanks for that , great images and once again congratulations on your photo gallery it helps no end when doing rebuild . thanks paul.
