Efforts to twist the bolts.
Efforts to twist the bolts.
Good day! Please tell me how hard you need to tighten the four screws on the back cover? I did not find the manual information. Thank you.
- Attachments
-

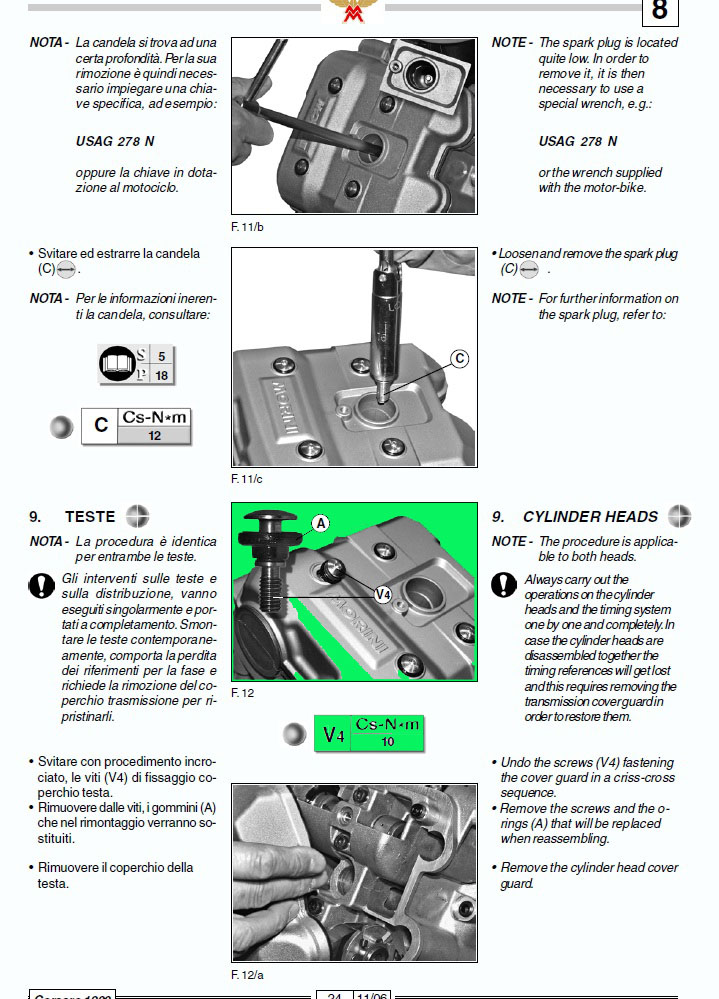

- Безымянный.jpg (255.68 KiB) Viewed 8544 times
-
- Posts: 2465
- Joined: 22 Nov 2008 17:41
- Location: Even further oop North
Re: Efforts to twist the bolts.
Yes, 10Nm seems ok. Tip: look closely on the manual
Re: Efforts to twist the bolts.
Thank you. And where exactly is written about it?
Re: Efforts to twist the bolts.
Fig 12 an corresponding v4 on screen you posted. I hope you mean the 4 screws holding the head cover.
